Data Collection App#

Introduction#

The Data Collection App (DCA) is a user-friendly interface for creating RuFaS inputs.

What & Why#

The DCA is built with a framework called JSON-Editor, which creates simple, easy-to-use HTML (webpage) interfaces for entering data and saving it in JSON form. The DCA was built to make it easier for users to create RuFaS inputs without having to work with raw JSON files.

How#

Creating the DCA Schemas#

If you have never worked with the DCA before on your computer, the first step to using it is creating the schema. There is a dedicated Task manager tasks for this: "DATA_COLLECTION_APP_UPDATE". This task has already been written up in input/data/tasks/dca_update_task.json. Change the "path" in the "tasks" blob of task_manager_metadata.json from "input/data/tasks/default_task.json" to "input/data/tasks/dca_update_task.json" then run RuFaS the usual way e.g. python main.py. The DCA should now be ready to roll on your computer!

Note: each time the metadata properties are updated, the DCA should also be updated. If it isn’t, it is possible that inputs created with the DCA will not be valid. So it is a good idea to run the DCA update task regularly, even if there are schemas already generated on your computer.

Using the DCA#

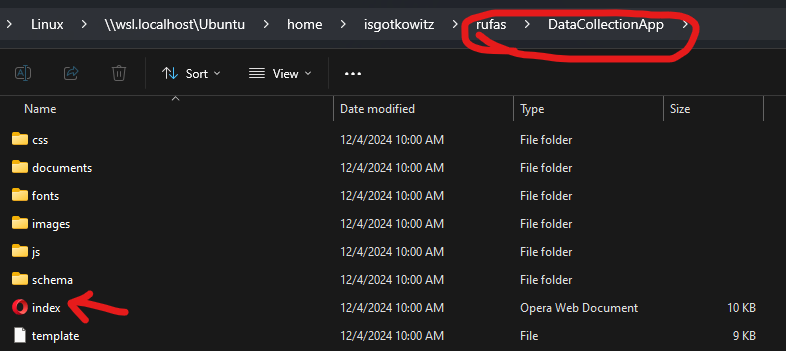

To start using the DCA, navigate to the RuFaS directory with your computer’s file explorer. Click on the directory titled DataCollectionApp, then index.html.

RuFaS Overview - GG

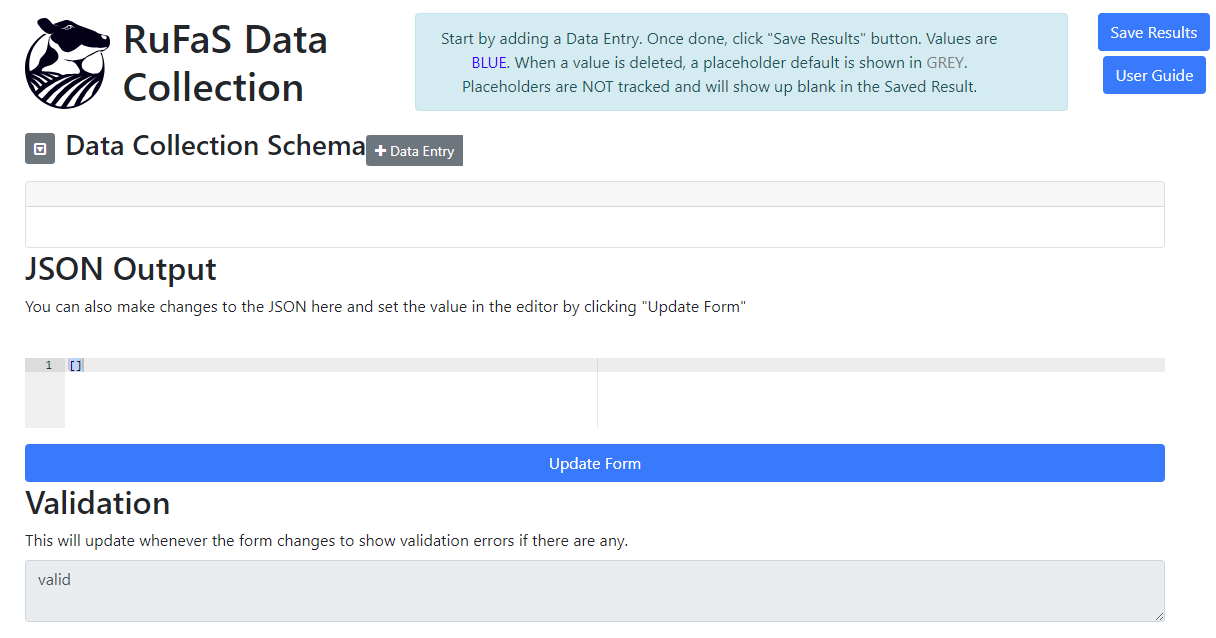

After clicking on index.html, a webpage should pop-up in your default browser. Now you’re all set to start using the DCA!

RuFaS Overview - GG

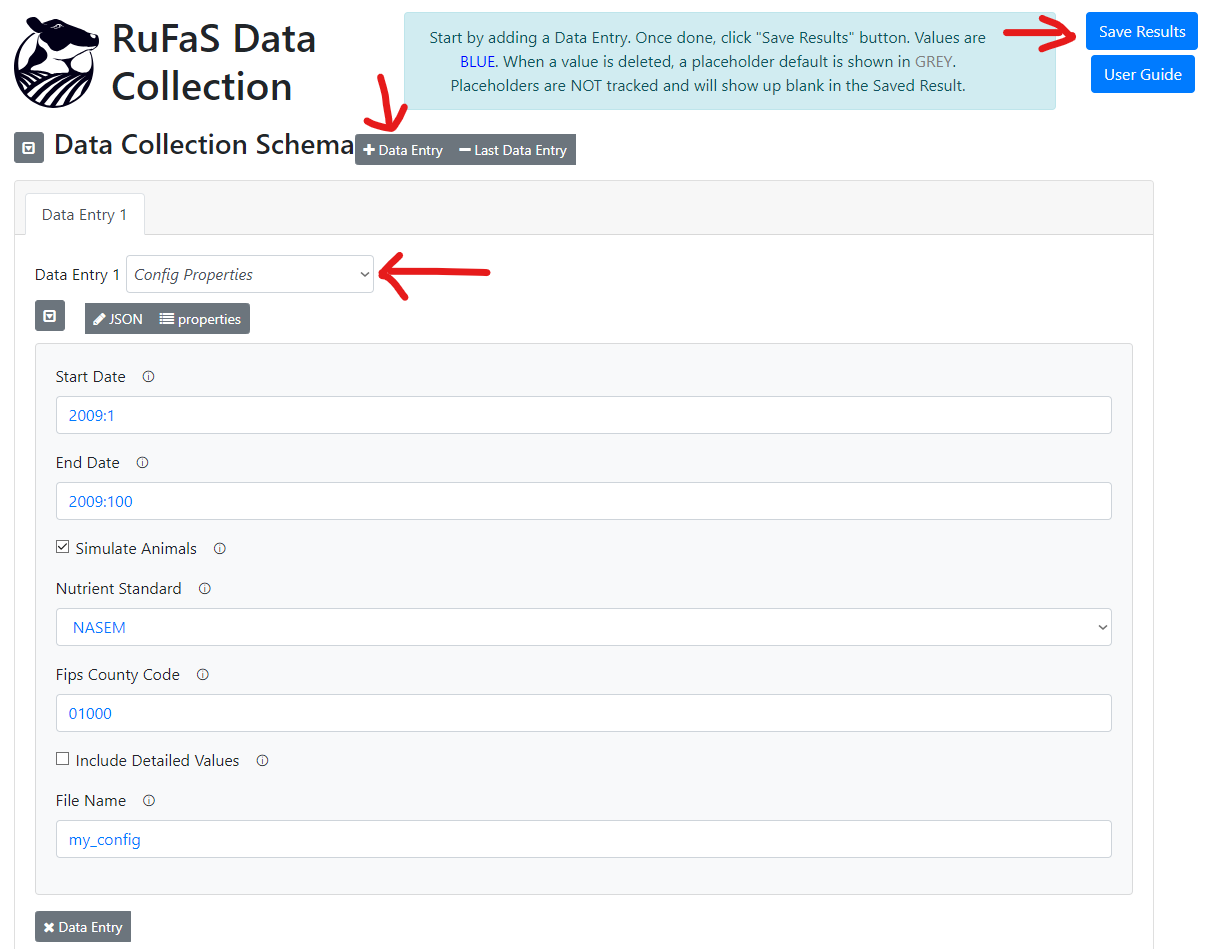

To start working on a new input file, click the “+ Data Entry” button. Then select which type of input you would like to create from the drop-down. After all the data has been entered, click the blue “Save Results” button to save all your data entries as JSON files.

RuFaS Overview - GG

Note: when “Save Results” is clicked, there maybe a warning from the browser warning that there are multiple files to be downloaded. This is expected and normal, so it is safe to allow multiple files to be downloaded in this case.

Now you have a new set of RuFaS JSON input files in your Downloads!

Working on the DCA#

This section is aimed at developers working on the DCA.

When the schemas of the DCA are updated, index.html is also updated to ensure that the new schemas are found properly. Check out the data_collection_app_updater.py in RUFAS/ to see the exact mechanics of this. It is important to know that the template text file is grabbed, the schemas added to it, and then is used to completely overwrite index.html. Because of this, it is VERY IMPORTANT that both template and index.html are changed when the scripts in the DCA are modified or added to, besides the ones which are updated automatically when schema are generated. If index.html has any changes or improvements that are not duplicated exactly in template, they will be lost as soon as the DCA update task is run.

Tip: ChatGPT knows about JSON-Editor, so it can especially helpful to include that you are working with this framework when prompting it.
